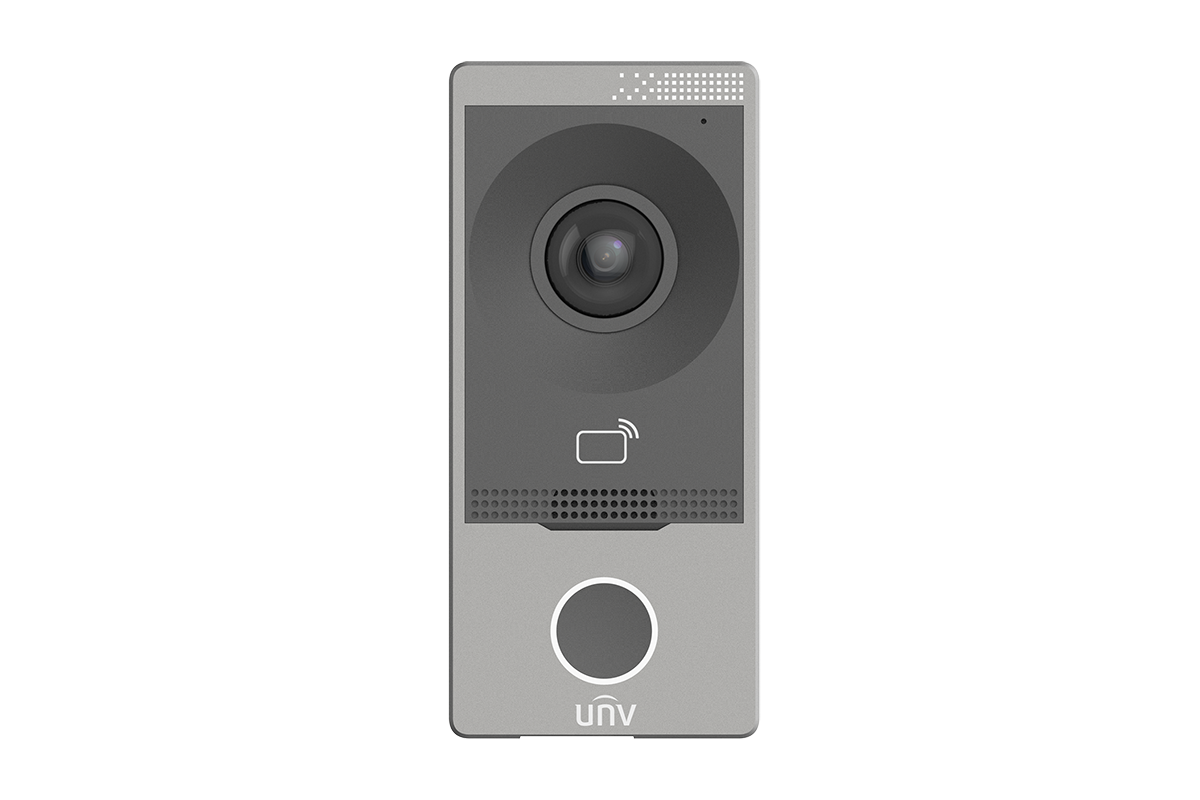

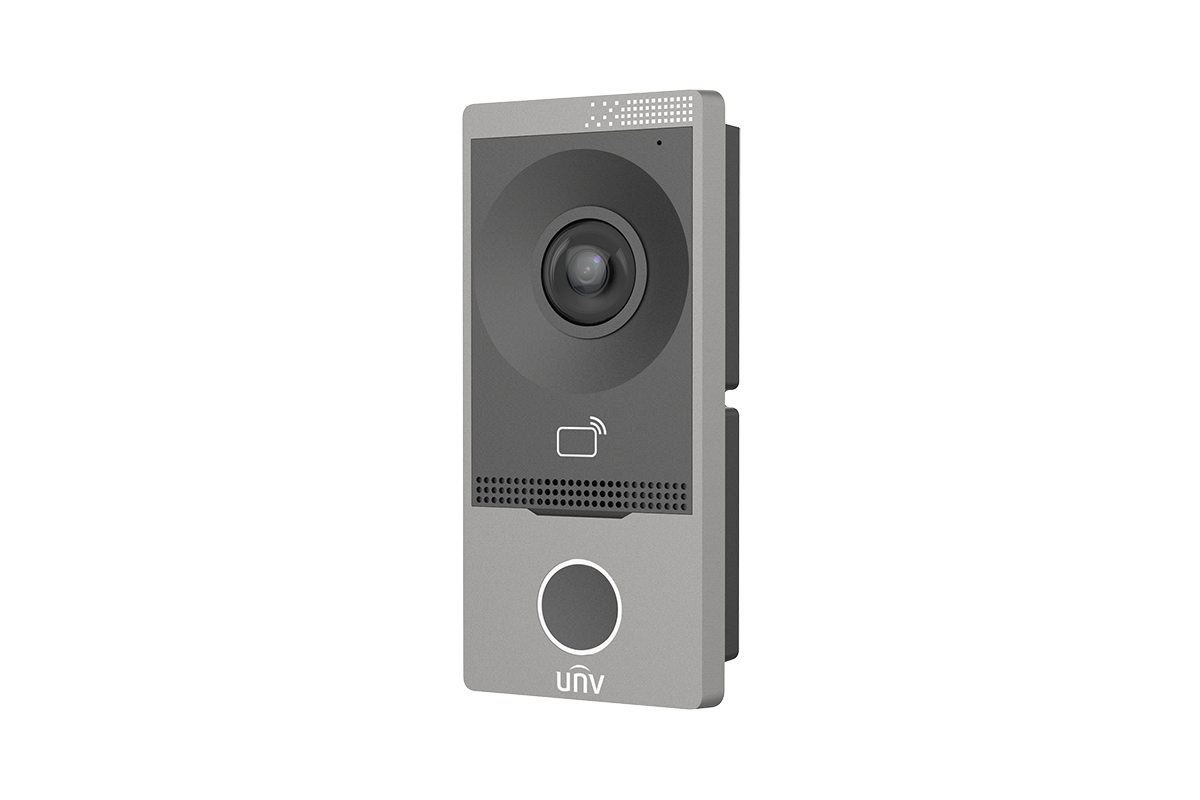

OEU-201S-HMK-W
Hardware Specification
Power Supply	DC 12V±25% input;IEEE802.3af, Standard PoE
Operation System	Linux
Supplement Light	IR light(Adaptive infrared compensation)
FOV	Horizontal:124.3°
	Vertical:67.5°
	Diagonal:147.2°
Power Consumption	＜10W
Volume Adjustment	Adjustable
Audio Quality	Noise suppression, echo cancellation and AGC
Audio Input	1 built-in omnidirectional microphone
Audio Output	1 built-in speaker
Audio Compression Standard	PCM, G711, MP3
Audio Compression Bitrate	128Kbps
Protection Level	IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.)
	IK08
Weight	0.267Kg
Dimensions (L x W x H)	79mm×171mm×34mm
Mount Method	Wall mounted, flush installation
Interface	Power *1, network port *1, WIFI, RS485, door lock interface *2, IO input *4
Network	100Mbps network port, supports IEEE802.3af PoE power supply
Operating Environment	﹣30℃~﹢60℃,10%～90%, non-condensing, outdoor
Specification Index
Card Capacity	10000
Linked Indoor Station Capacity	20
Basic Business
WDR	Support DWDR
Protocol	UNV private protocol
Button	1 physical button
