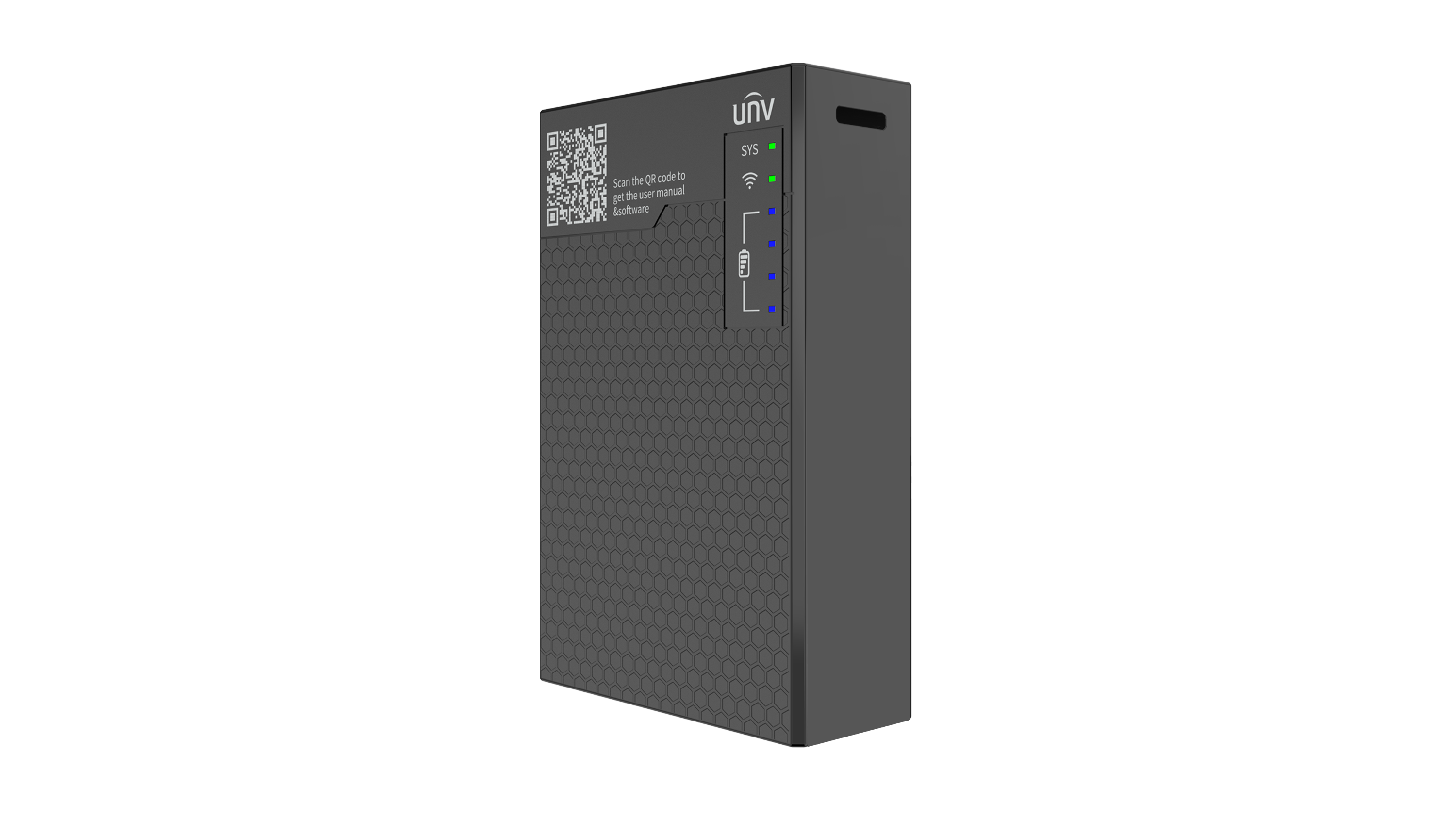

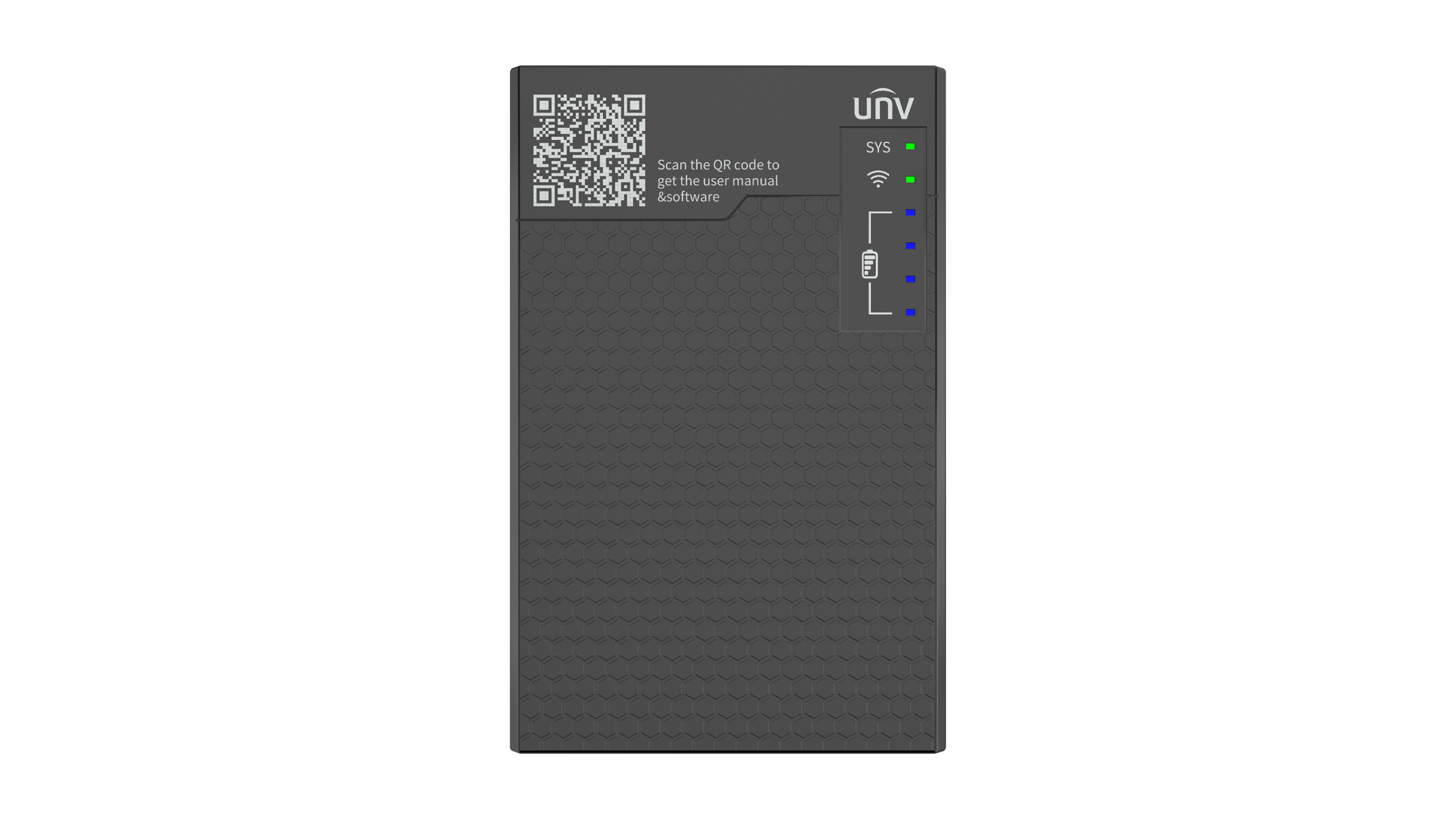

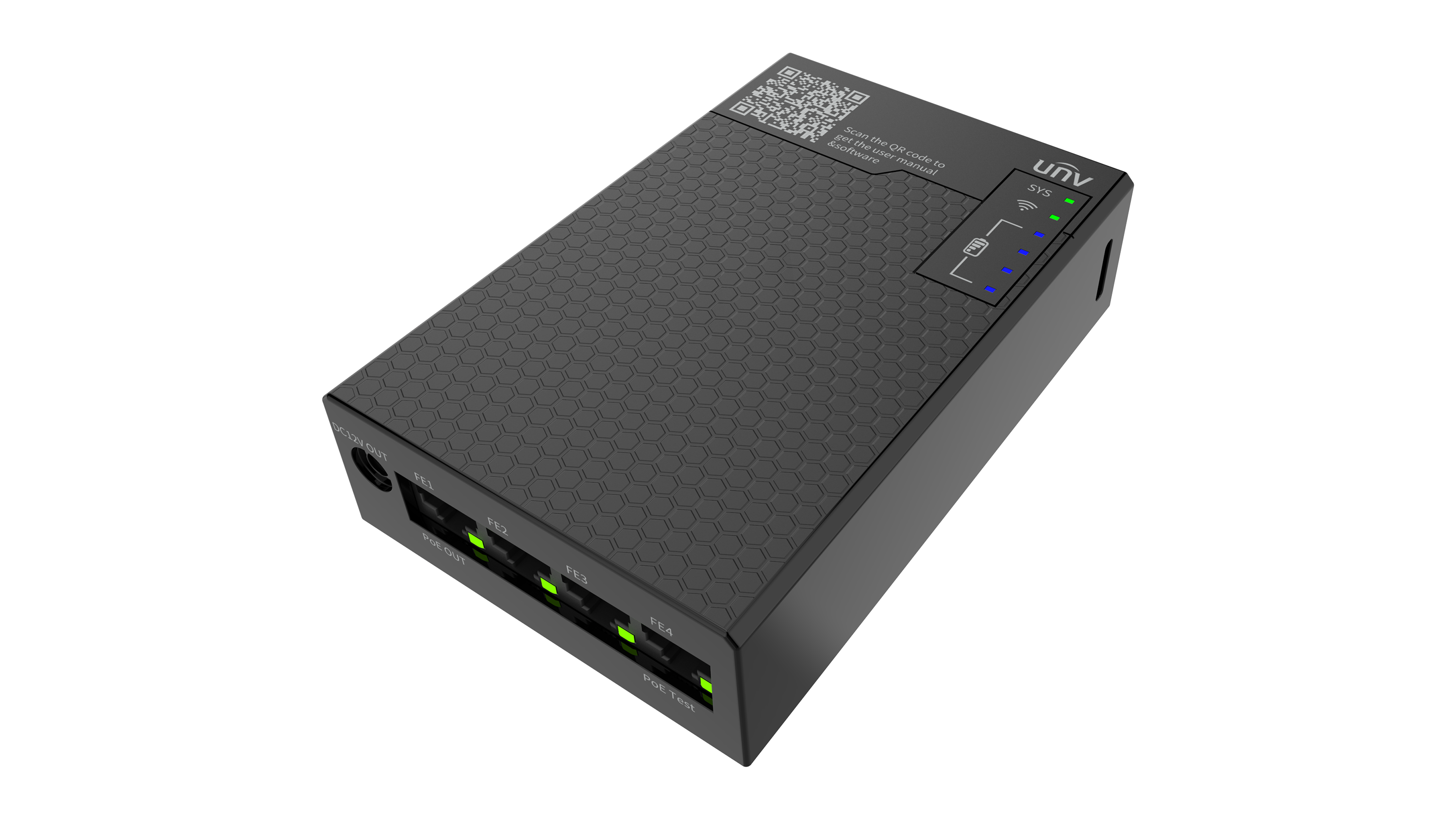

UNV-Link Pro Connect Box
| Interface | GCB01-B7 | |||

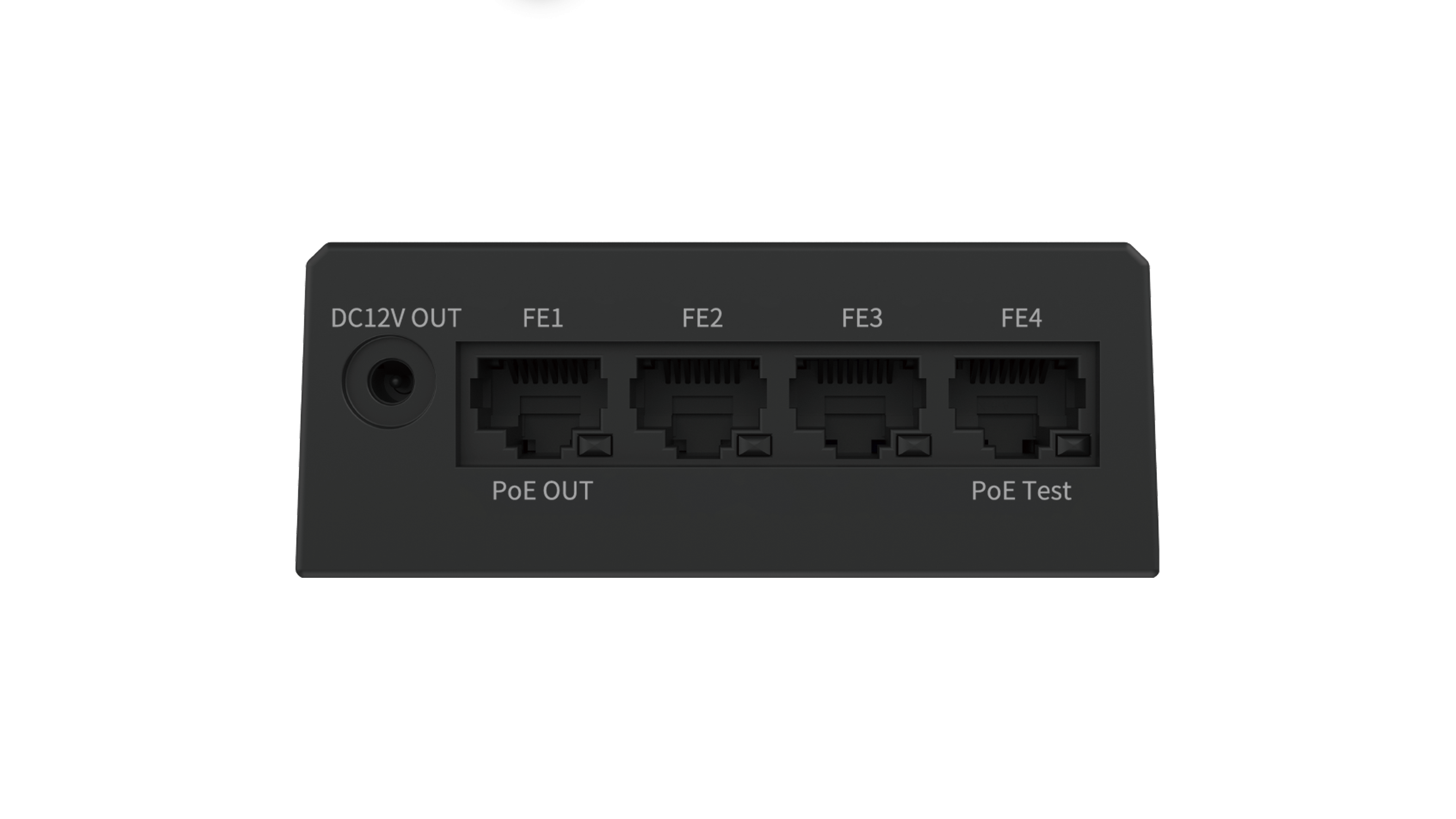

| Network | 4 x RJ45 10M/100M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test | |||
| Voltage Test | 1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) | |||
| 1 x DC voltage Test(DC voltage detection Range： 1V~56V) | ||||
| Network | ||||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n) | |||
| Structure / Environment | ||||
| Battery Capacity | 18650 lithium battery, 7500mAH | |||

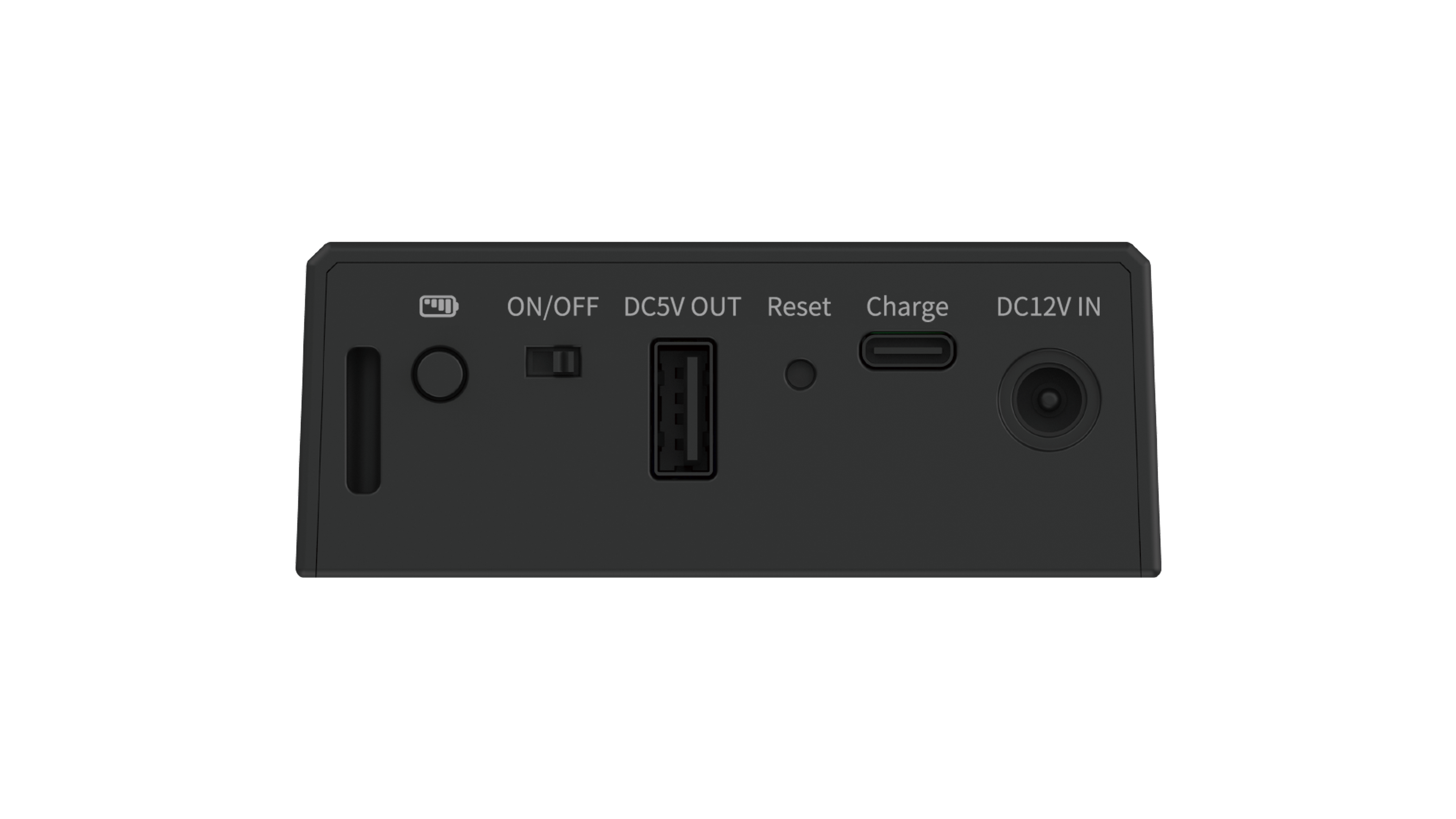

| Power Input | 1 x DC 5V/2A max, type-c | |||
| Power Output | 1 x DC 12V/1A output; 1 x DC 5V/1A output, type-A | |||
| General | ||||
| LED Indicator | System indicator, WiFi indicator, Battery indicator | |||
| Dimensions | 130 × 85 × 33mm (5.1” × 3.3” × 1.3”) (L x W x H) | |||
| Working Environment | -20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||
| Reset Button | Support | |||
