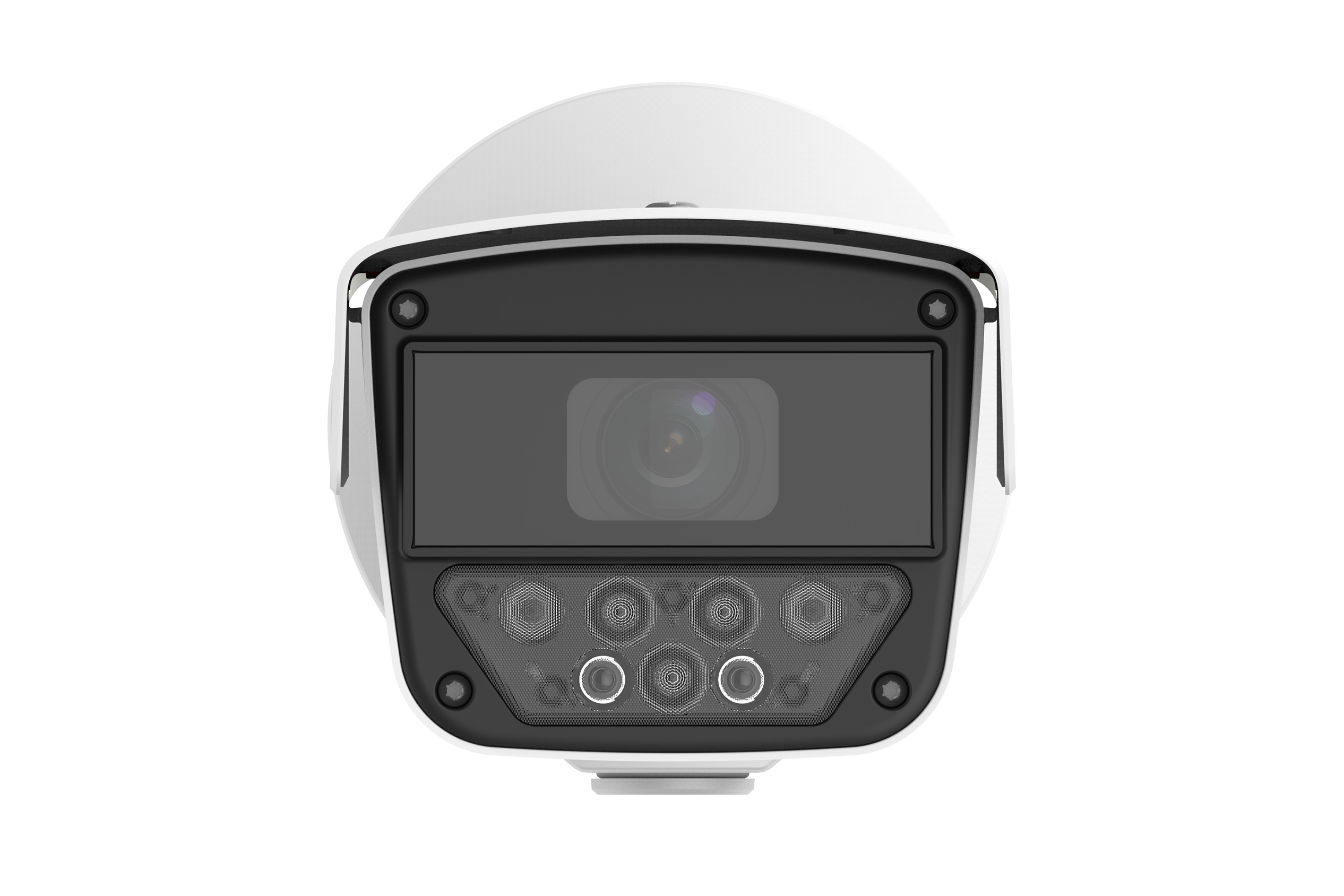

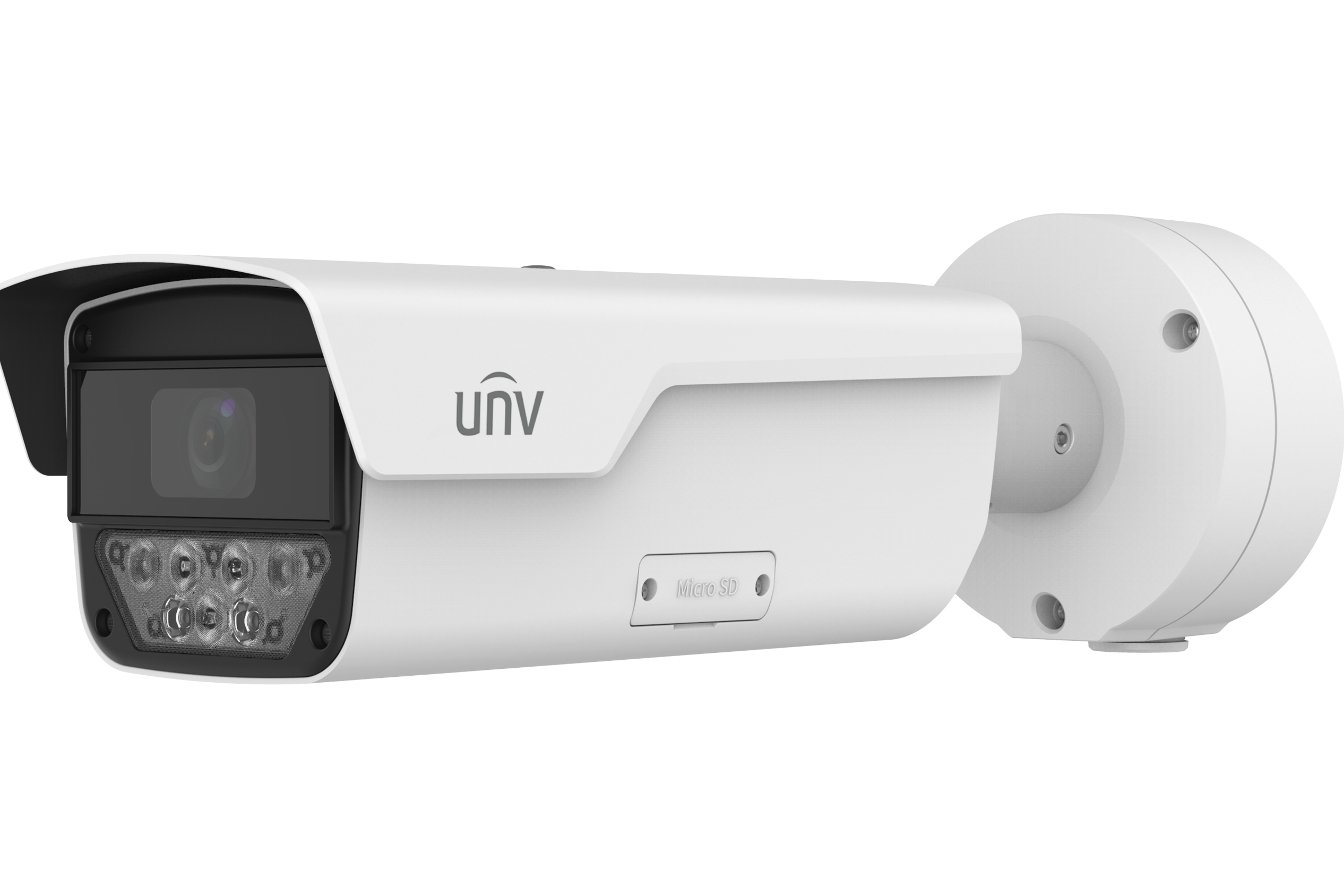

UNIVIEW-IP Camera-4MP Automatic Number Plate Recognation IP camera(ANPR)
Gallery Image
Gallery Image
UNIVIEW-IP Camera-4MP Automatic Number Plate Recognation IP camera(ANPR)
Product Gallery
Product Gallery

UNIVIEW-IP Camera-4MP Automatic Number Plate Recognation IP camera(ANPR)


Model:

PKC2640-Z80-IR-P

Brand: Uniview

SKU: 000016

In Stock

  • 4MP Overseas Recognition Of Vehicle License Plate Bullet IP Camera

    • Features

    • Optics

    • Built-in lens supports motorized zoom to adapt to different scenes and allows for easy installation.

    • Automatic gain control, white balance, and WDR for various light conditions.

    • Compression

    • Supports triple streams.

    • Advanced H.265 encoding technology improves compression efficiency.

    • Custom OSD allows various vehicle information to be overlaid on the video image.

    • Functions

    • Built-in vehicle and license plate recognition algorithm can recognize standard license plates of multiple countries.

    • Supports capturing vehicle head only.

    • Supports plate allowlist and blocklist configuration.

    • Supports vehicle access control when connected to a barrier.

    • Supports Micro SD cards of up to 256GB.

    • Automatic network replenishment (ANR) allows to automatically store video to SD card in case of network disconnection.

    • Supports audio collection and intercom.

    • Network

    • Network auto-adaptability ensures smooth live video in relatively bad network conditions such as packet loss.

    • Supports SNMP.

    • Supports UNP for NAT traversal between public and private networks.

    • Supports integration with the third party via SDK or HTTP.

    • Network Security

    • Supports authorized user access by password. Weak password detection and account lock-up when failed login attempts reach the upper limit enhance password security.

    • Supports Web access via HTTPS.

    • RTSP authentication prevents unauthorized video stream requests.

    • IP address filtering prevents illegal access from untrusted IP addresses.

    • Gateway ARP protection prevents MAC address spoofing.

    • Structure

    • Supports DC 12V and PoE (802.3at) power supplies.

    • Cast aluminum body offers excellent heat dissipation.

    • 3-axis mounting bracket for various installation scenarios.

    • A junction box on the mounting bracket is convenient for storing tail cables.

    • IP67 and IK10 protection.

      PKC2640@Z80-P PKC2640@Z80-IR-P PKC2640@Z80-P PKC2640@Z80-IR-P
    Camera
    Sensor 1/1.8-inch 4MP CMOS
    Focal length 8 to 32mm 8 to 32mm, motorized zoom
    8 to 32mm, motorized zoom 8 to 32mm, motorized zoom
    Shutter Auto/Manual, range: 1/30 to 1/100000s
    Minimum illumination 0.002lux (F1.7)
    Image collection format 2688*1520@30 (default), 2688*1520@25
    Resolution Main stream: 2688*1520, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF
    Frame rate 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
    Video compression H.264 (default), H.265
    ROI Supports up to 8 regions
    Video OSD Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents
    Image OSD Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location
    Smart
    Application scenario ≤ 80km/h for regular roads;
    Camera with the focal length of 8 to 32mm can be used for regular roads
    Vehicle detection mode Supports video detection
    License plate number recognition Supports recognition of license plates with numbers and letters by default
    List configuration Supports allowlist and blocklist configuration, each list allows 20,000 items
    Supports import, export, add, and delete operations
    Barrier opening policy Open barrier only for the recognized vehicles
    Open barrier for all vehicles
    Open barrier only for vehicles on the allowlist
    Open barrier for vehicles not on the blocklist
    Configurable Boolean output ID
    Storage
    Edge storage Supports ANR with a Micro SD card, up to 256GB
    Structure
    Illumination Built-in integrated illumination module, including 4 warm light LEDs, 50m illumination distance, automatic on/off control Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control
    Built-in integrated illumination module, including 4 warm light LEDs, 50m illumination distance, automatic on/off control Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control
    Bracket 3-axis mounting bracket
    Junction box The camera comes with a junction box for storing tail cable
    Interface
    Network interface 1 × 10M/100M RJ45
    Serial port 1 × RS485
    Boolean output 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A
    Boolean input 2 x input, supports level (up to DC 5V) and switch signal
    Audio interface 1 × audio input, 1 × audio output
    Storage interface 1 × Micro SD card slot
    General
    Power supply DC12V + 25% - 10%
    Max. power consumption: 20W
    Supports PoE (802.3at, class 4)
    Dimensions (L×W×H) 406mm x 126mm x 130mm
    Weight 2.1kg
    Operating environment -40℃ to 60℃, ≤90% RH
    Ingress protection IP67, IK10
