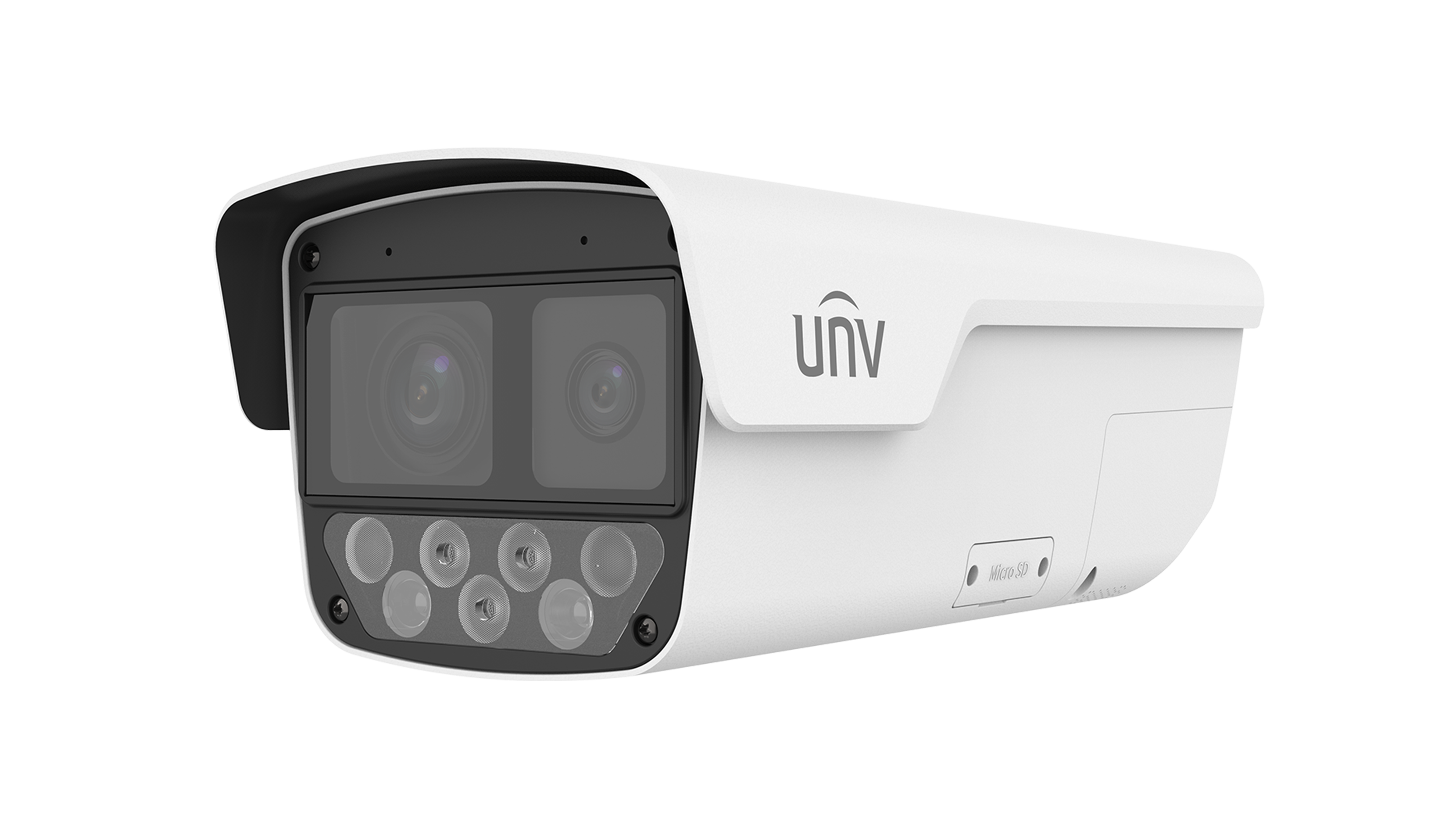

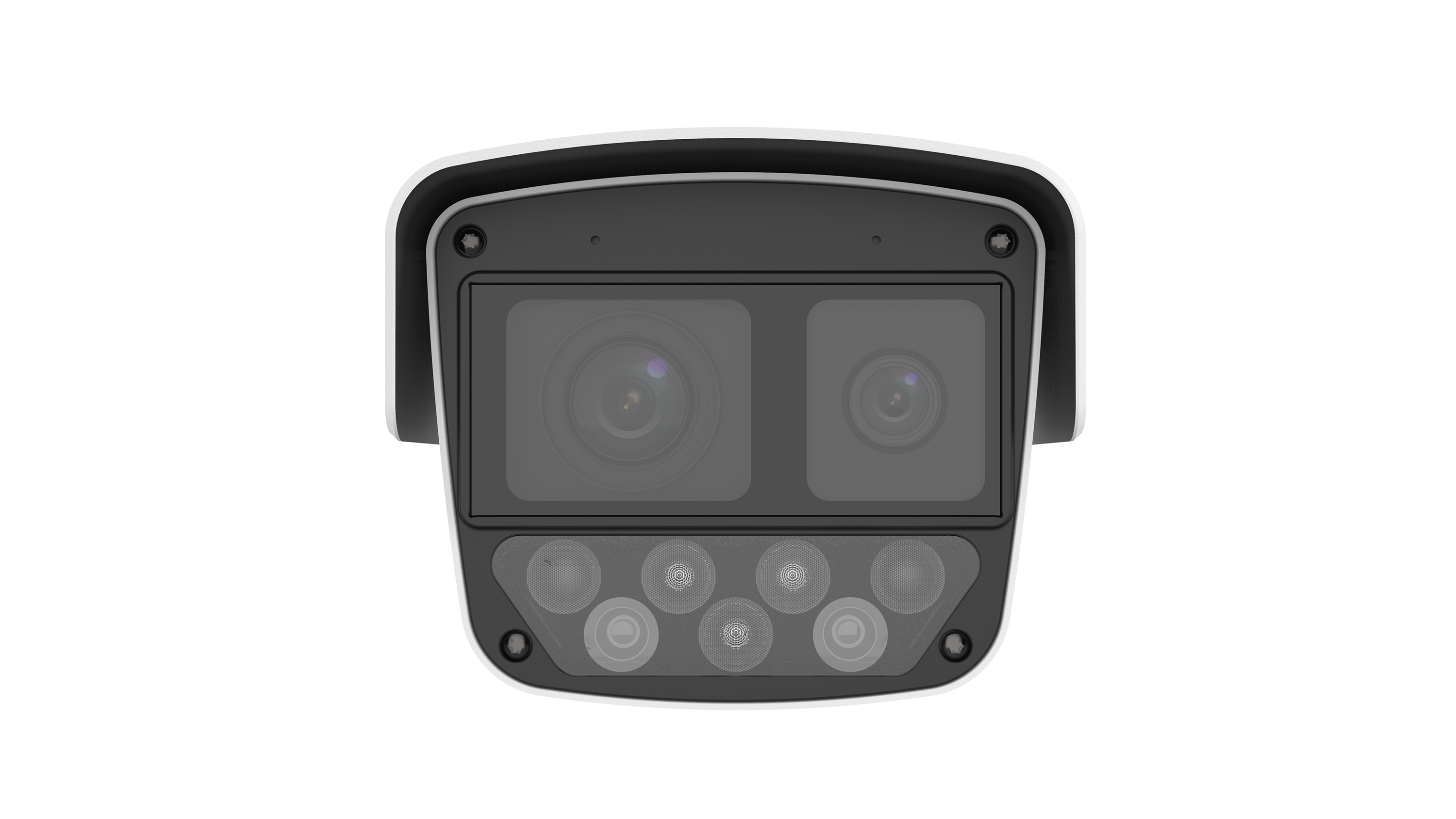

Camera	IPC28184EA-ADX5K-F40-I1
Max Resolution	4 MP				8 MP
Sensor	1/1.8" CMOS				1/1.8" CMOS
Min. Illumination	Colour:0.0005lux (F1.0, AGC ON)				Colour:0.005lux (F1.6, AGC ON)
					0 lux with IR
Day/Night	N/A				IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s				Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Tilt: -10° to 10° (electric control , for installation and debugging)				Tilt: -10° to 10° (electric control , for installation and debugging)
WDR	120 dB				120 dB
S/N	>56 dB				>56 dB
Lens
Focal Length	4.0 mm				10 to 50 mm
Optical Zoom	N/A				5X
Iris Type	Fixed				DC-iris
Iris	F1.0				F1.6
Field of View (H)	94.7°				33.8°~8.4°
Field of View (V)	50.3°				18.8°~4.6°
Field of View (D)	116.5°				39.9°~10.0°
DORI
DORI Distance (Detect)	79.1m(259.6ft)				292.5m(959.6ft)~1237.5m(4060.0ft)
DORI Distance (Observe)	31.7m(103.9ft)				117.0m(383.9ft)~495.0m(1624.0ft)
DORI Distance (Recognize)	15.8m(51.9ft)				58.5m(191.9ft)~247.5m(812.0ft)
DORI Distance (Identify)	7.9m(26.0ft)				29.3m(96.0ft)~123.8m(406.0ft)
Illuminator
Illumination Distance (Warm Light)	Up to 30m (98.43ft)				Up to 30m (98.43ft)
Illumination Distance (IR)	N/A				Up to 50m (164.0ft)
Wavelength	N/A				750 nm
Light On/Off Control	Auto/Manual				Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG				Ultra 265, H.265, H.264, MJPEG
Frame Rate-Main Stream	4MP(2688*1520), Max 30fps				8MP(3840*2160), Max 30fps
Frame Rate-Sub Stream	2MP (1920*1080), Max 30fps				2MP (1920*1080), Max 30fps
Frame Rate-Third Stream	D1 (720*576), Max 30fps				D1 (720*576), Max 30fps
Video Bit Rate	128 Kbps to 16 Mbps				128 Kbps to 16 Mbps
U-code	Support				Support
ROI	Support				Support
Video Stream	Triple streams				Triple streams
OSD	Up to 10 OSDs				Up to 10 OSDs
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2				Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR				2D/3D DNR
Smart IR	Support				Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise				Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLC	Support				Support
BLC	Support				Support
Defog	Digital defog				Digital defog
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)				Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Recognition	N/A				Face Recognition: Max support 16 face libraries, Max supports 100000 faces in face library
Metadata Analyse	N/A				Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection
People Counting	N/A				Support people flow counting and crowd density monitoring
Events
Basic Detection	Motion detection, Tampering alarm, Audio detection				Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output				Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Audio
Audio Compression	G.711U, G.711A				G.711U, G.711A
Audio Bitrate	128 Kbps				128 Kbps
Two-way Audio	Support				Support
Suppression	Support				Support
Sampling Rate	16KHZ				16KHZ
Storage
Edge Storage	Micro SD, up to 512 GB				Micro SD, up to 512 GB
Network Storage	ANR, NAS (NFS)				ANR, NAS (NFS)
Network
Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS				SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK				ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator				Up to 32 users. 3 user levels: administrator, common user and operator
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF				TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro				EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+				Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Interface
Audio I/O	2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]				2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	03.თებ				03.თებ
Serial Port	1 channel RS485 interface				1 channel RS485 interface
Built-in Mic	Built-in two mics				Built-in two mics
Built-in Speaker	Support				Support
Network	1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet				1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet
Certification
EMC	CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)				CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
	FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)				FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017)				CE LVD (EN 62368-1:2014+A11:2017)
	UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)				UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)				CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)				IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power	AC 24 V±25%				AC 24 V±25%
Power Consumption	Max 31w				Max 31w
Power Interface	Wires with cold-pressed terminal				Wires with cold-pressed terminal
Dimensions	326 x 147 x 121 mm (12.8" x 5.8" x 4.8") (L x W x H)				326 x 147 x 121 mm (12.8" x 5.8" x 4.8") (L x W x H)
Weight	2.11kg				2.11kg
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)				-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)				-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV				6 KV
Reset Button	Support				Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak				22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
